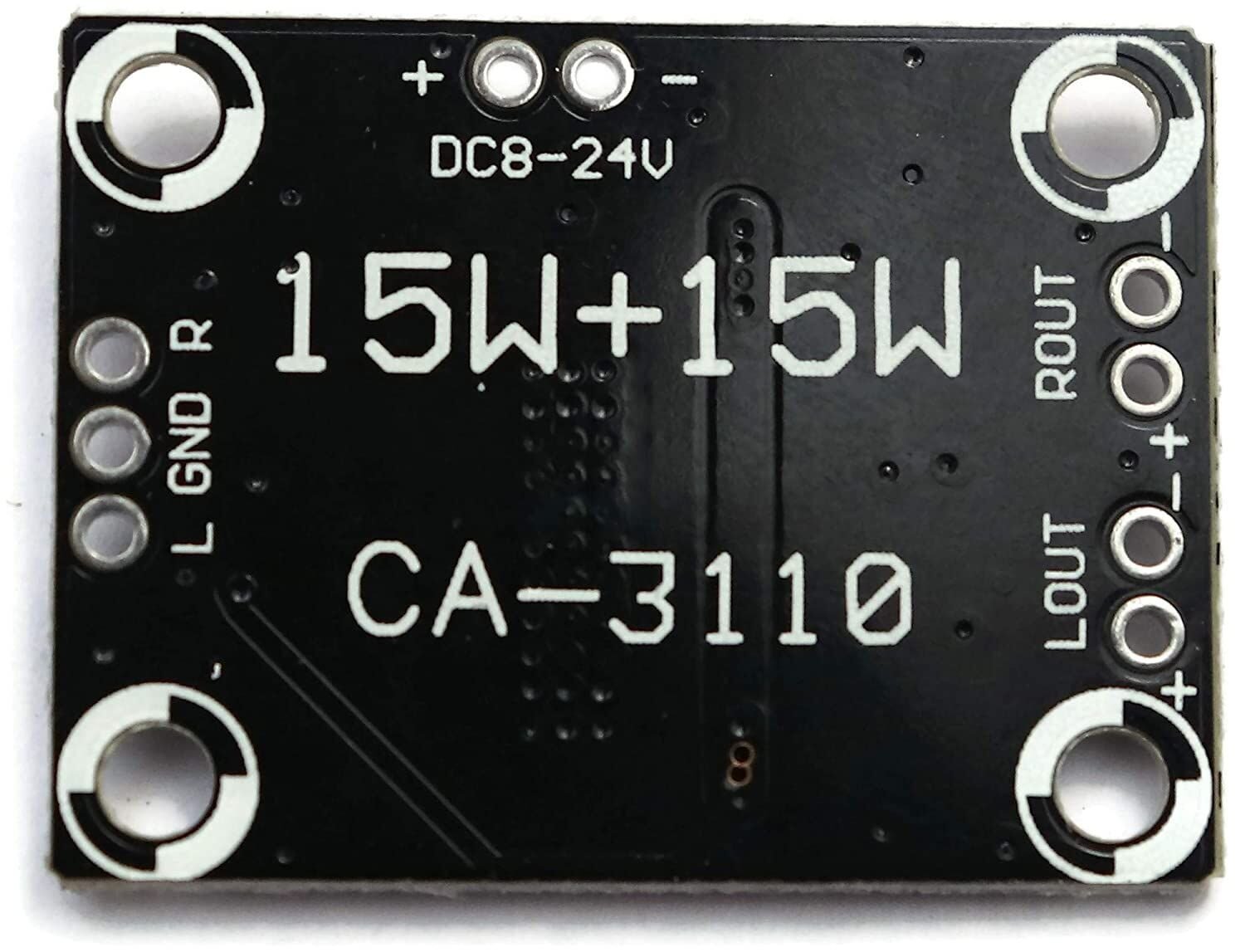

TPA3110 30W (15W+15W) Digital Stereo Audio Power Amplifier Board CA-3110

119.00 Original price was: ₹119.00.92.00Current price is: ₹92.00.
-23%

Features :

  1. Wide range in Input voltage Source i.e. from 8v to 24v.
  2. It can be used for applications like car, vehicle, computer speaker, family audio and video systems, and in your own DIY music System.
  3. This amplifier board comes with 4 mounting holes, which is very helpful in tightening the complete circuit board according to your project requirement.
  4. 3110 power amplifier chip does not require a heat dissipation sink. It has over-current and over-heat protection.

Specification :

  • Operating voltage range: 8V to 24V
  • Amplifier chip: TPA3110
  • Output power: 2 x 15W
  • Dimension: 25mm x 33mm x 3mm
Best Rates on Express Shipping – Hurry! Shipping starts from Rs65.

Free Shipping Offer - Avail free shipping on all orders above Rs699.

Volume Discounts- Buy More Save More! Discounts upto 20%. Contact us

Special Bulk Discounts for colleges, Schools, Companies & resellers Contact us

Cash on Delivery Available above Rs 699

single

4 in stock

SKU: AA11021 Category:

TPA3110 is a 2×15 Watt Class D Power Amplifier Board. It is designed to drive Professional Stereo Audio Speakers. This Amplifier Board is mostly used with 8 ohm speakers but it can successfully drive the speaker as low as 4 ohm. Its a very high efficient board which eliminates the need of using a heat sink. This device is fully protected against the shorts to GND, VCC & Output to Output.

The Application of this device is endless in the segment of consumer electronics. Its most common and widely used application is in Televisions and mid range compact  audio equipment’s.
