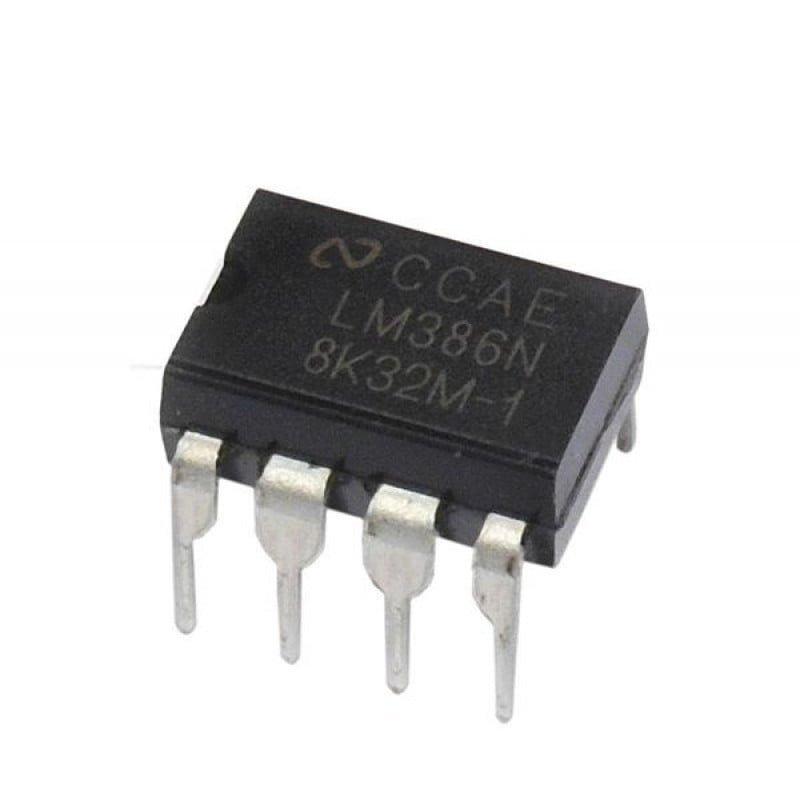

The LM386 is power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.
The inputs are ground referenced while the output automatically biases to one-half the supply voltage. The quiescent power drain is only 24 mW when operating from a 6-V supply, making the LM386 ideal for battery operation.
Specifications:-
Â
| Parameter | Specification |
| Part number | LM386 |
| Audio input type | Analog Input |
| Architecture | Class-AB |
| Speaker channels (Max) | Mono |
| Power stage supply (Min) (V) | 4 |
| Power stage supply (Max) (V) | 18 |
| Output power (W) | 0.325 |
| Load (Min)(ohms) | 4 |
| THD N @ 1 kHz (%) | 0.2 |
| Iq (Typ) (mA) | 4 |
| Control interface | Hardware |
| Closed/open loop | Closed |
| Analog supply (Min) (V) | 4 |
| Analog supply (Max )(V) | 18 |
| PSRR (dB) | 50 |
| Operating temperature range (C) | 0 to 70 |
| Rating | See Data Sheet |
