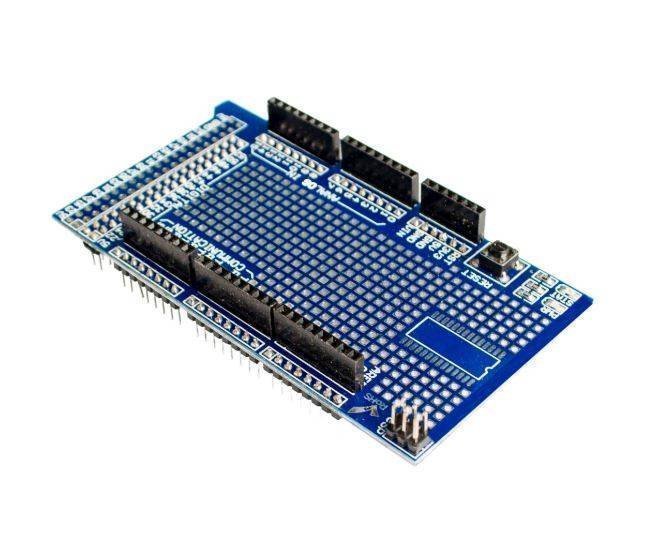

Arduino MEGA Proto Shield prototype expansion board with Immersion Gold PCB processing technology. The maximum length and width of the Proto Shield PCB are 2.7 and 2.1 inches respectively. three screw holes allow the shield to be attached to a surface or case. note that the distance between digital pins 7 and 8 is 160 mil (12:16 “)
Features :
- The shield can support being fully assembled with Arduino MEGA
- Support soldering components directly on this shield
- Support sticking the mini breadboards on this shield
- Reset button up top
- Mainboard aureate quadrate
- With SOP28 SMT components encapsulation
- With PWR & STAT indicator
