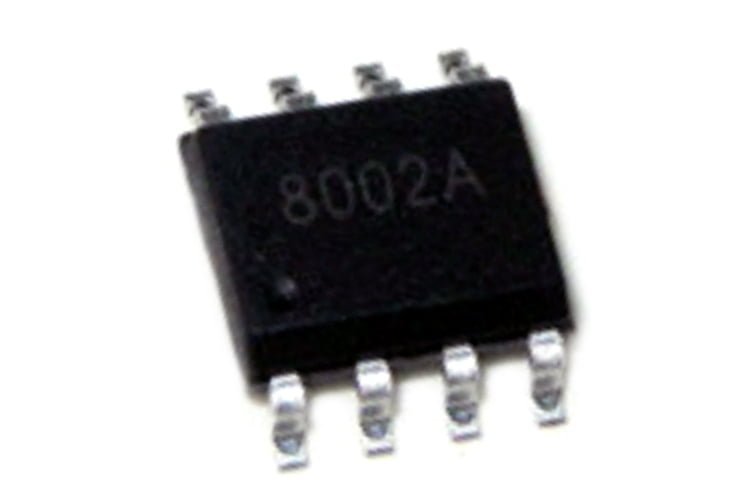

MD8002A is a mono bridged audio power amplifier capable of delivering 3W of continuous average power to 3Ω BTL load. This IC comes with features like thermal shutdown protection, unity-gain stability, external gain set, and supply voltage of this IC is 5V.

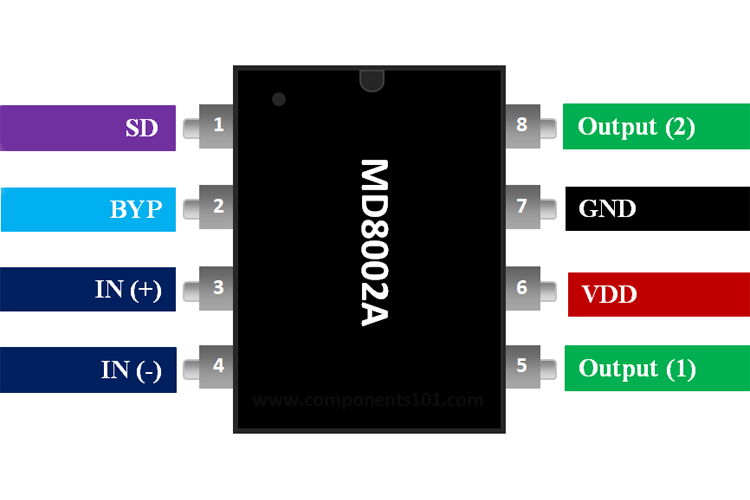

Pin Description of MD8002A
| Pin Number | Pin Name | Description |
| 1 | SD | Shutdown Pin. Active high |
| 2 | BYP | Bypass Capacitor Pin |
| 3 | IN | Positive input of the first Amplifier |
| 4 | -IN | Negative pin of the first amplifier |
| 5 | VO1 | Negative Output |
| 6 | VDD | Positive Supply Pin |
| 7 | GND | Ground Pin |
| 8 | VO2 | Positive Output |
Applications of MD8002A
- Portable Computers
- Desktop Computers
- Low Voltage Audio Systems Â
