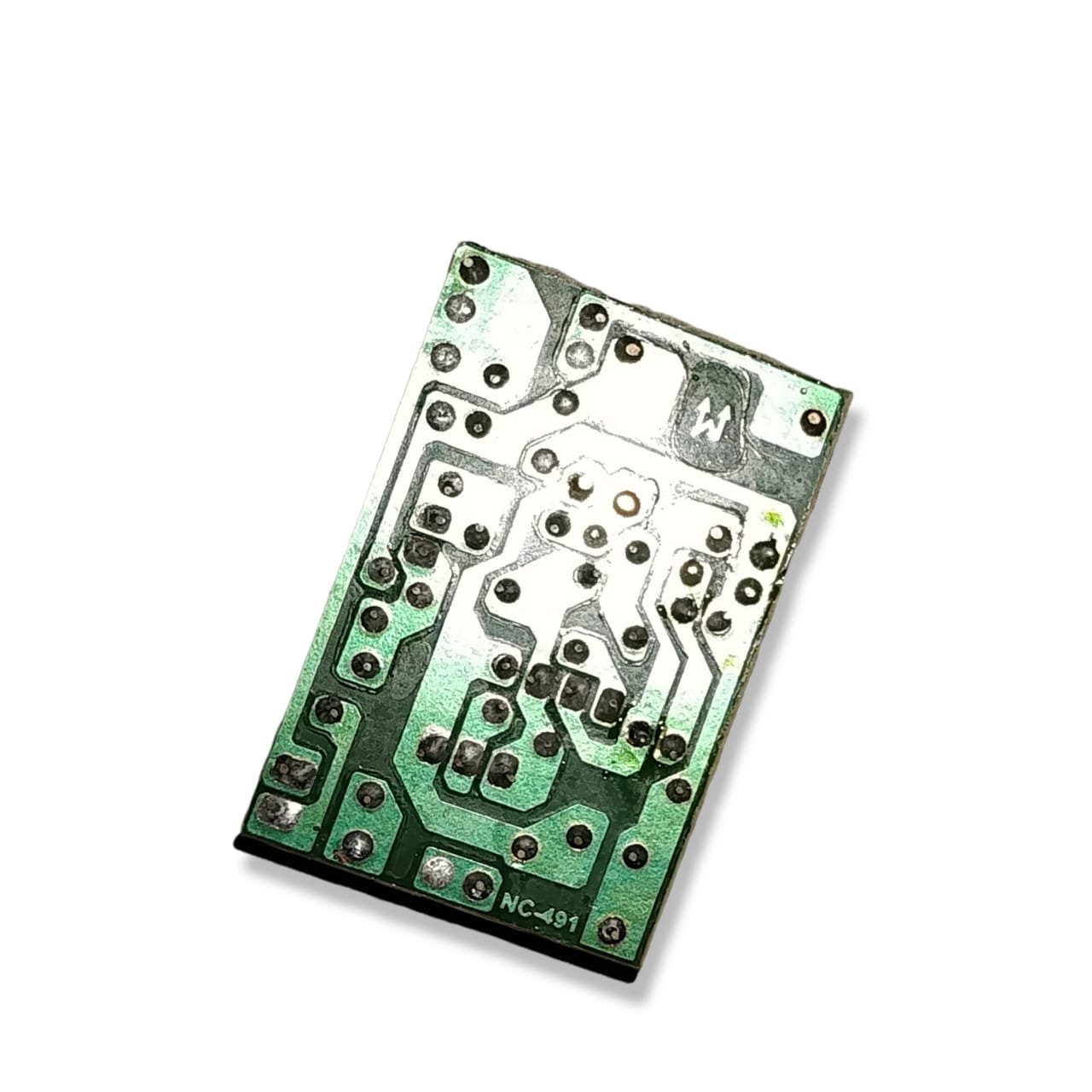

Circuit produces an output of 5V and upto 1A, it is mainly used in cell phone chargers, etc. The circuit board converts an input voltage of 220V AC and converts it into a 5V DC output. The circuit has a transformer that steps down the voltage from 220V AC to 5V AC, The circuit act as a rectifier that converts the AC voltage to DC voltage. The circuit consists of numerous resistors and capacitors, which acts as filters. The resistors and capacitors smooth the current and the voltage flow giving an approximate, average voltage value that is required.
Input Rating : 110-240V AC 50Hz,
Output rating 5V DC 800mA-1A 4Watt
Product Dimensions LWH : 45X30X20mm
Brand: Indian
