Voltmeter-Ammeter DSN-VC288

(0 customer reviews) 0 sold

Current price is: ₹185.00. Original price was: ₹290.00.

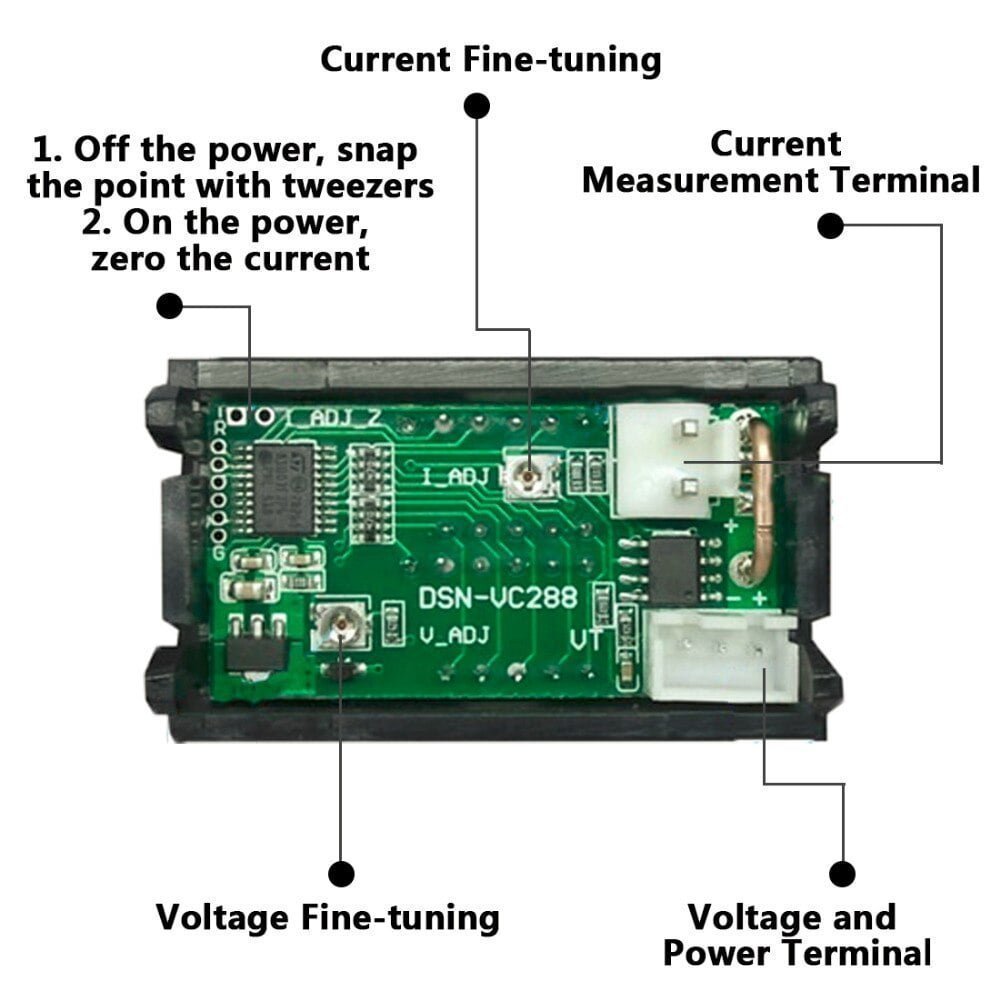

Features of VC288

  • Working voltage of Meter itself : DC 4 – 30V (The maximum input voltage can not exceed 30V. Otherwise the meter will be burned)
  • Working current of Meter itself : =20mA
  • Voltage Measuring range : DC 0 – 100V
  • Current Measuring range : DC 0 – 100A
  • Voltage resolution (V) : 0.1V
  • Current resolution (A) : 0.1A (Measuring current<10A), 1A (Measuring current>=10A)
  • Measure accuracy : 0.1% (± 1 digit)
  • Display : 0.28″ digital tube, Two color blue and red
  • Refresh rate : about 300mS / times
  • Dimensions : 48mm*29mm*26mm
  • Operation Temp : -10oC- 65oC

1 in stock

  • Delivery Return

    Delivery

    We ship PAN India. All orders are shipped with a suitable delivery partner with tracking number. Always free shipping for orders over IN ₹699. During sale periods and promotions the delivery time may be longer than normal.

    Return

    NexElectronic will accept exchanges and returns within 3 days of the date of purchase (1 days during the sales period), on presentation of the original till receipt at any store where the corresponding collection is available within the country of purchase.

    Your return will usually be processed within a day to a day and a half. We’ll send you a Return Notification email to notify you once the return has been completed.

    Refunds for your order won't begin until the product is received back in like-new condition. If the product has been damaged, altered, or replaced, there might be a partial return available, depending on the condition of the item.

    Help

  • Ask a Question
SKU: PW51564 Categories: ,

Guaranteed Safe Checkout

Free

Worldwide Shopping

100%

Guaranteed Satisfaction

30 Day

Guaranteed Money Back

Description

This is DSN-VC288 LED Digital Ammeter–Voltmeter. This meter will measure up to 100 VDC with a 0.1-volt resolution.

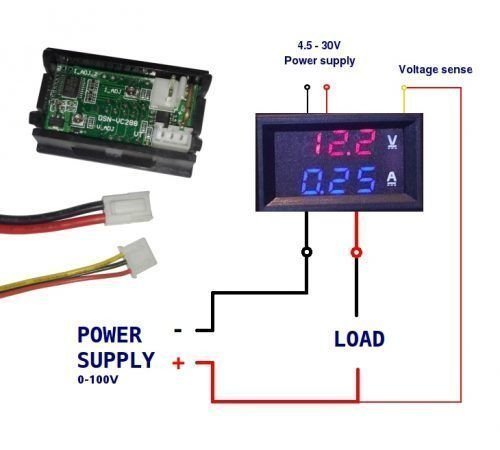

This can be supplied anywhere from 4 volts DC up to 30 VDC. This is a separate power supply that is isolated from the source, it is possible to use the same supply but it seems to affect the amp meter reading. The 3 wire harness is used for a ground that connects directly to the battery or supply ground of the load.

  1. It measures up to 100V and 100A DC.
  2. Very handy and small in size.
  3. It requires a power supply of 4-30V Max.
  4. 100% Brand new and high quality.
